Mã sản phẩm: V10k gas feed system
Tên sản phẩm: V10k gas feed system

Starting with the invention of the world’s first chlorinator over 80 years ago, Wallace & Tiernan continues to be the leader in the disinfection of potable water, wastewater, industrial water, process water and swimming pools

 Starting with the invention of the world’s
first chlorinator over 80 years ago,
Wallace & Tiernan continues to be the
leader in the disinfection of potable water,
wastewater, industrial water, process
water and swimming pools.

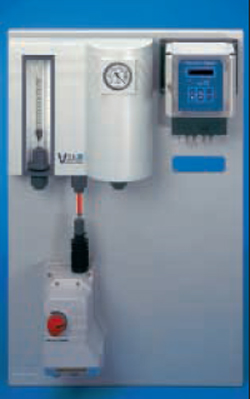

The V10k chlorinator represents the
culmination of the collective experience
from Wallace & Tiernan centres around
the world. The result is an efficient, lowcapacity
gas feeder for up to 15 kg/h
with a standardised flexible design that
provides a variety of configurations.
V-NOTCH FOR EXACT
GAS FLOW CONTROL
The V-notch control orifice, field-proven in
hundreds of thousands of installations
around the world, provides reliable,
consistent gas feed at any
capacity requirements.
It consists of a precision
grooved plug that slides
through an annular seat.
Any position of the plug
in the seat results in a
specific orifice size and
a corresponding feed rate.
The large size and configuration
of the orifice resists fouling from
contaminants in the gas supply.
This results in accurate gas flow control
and excellent repeatability.
Control of this V-notch can be from simple
manual operation up to sophisticated
automatic control schemes.
ALL-VACUUM OPERATION
ENSURES HIGHEST SAFETY
The complete V10k gas system operates
under a vacuum. A vacuum regulating
valve at the gas supply container reduces
gas pressure to a vacuum at once. Dry gas
moves through the system to the injector
under vacuum. If at any time a leak occurs
from a loose fitting, or an accidentally cut
gas line or tubing, the loss of vacuum
causes the system to shut down without
releasing gas to the atmosphere.
EASY READABILITY
The use of large size rotameters provides
the highest degree of resolution for
accurate indication of feed rate,
unmatched by any other manufacturer
in a similar capacity gas feed system. The
large scale on the rotameter combined
with the white background of the
mounting frame enhance the resolution.
CONVENIENT,
WALL MOUNTED DESIGN
The V10k system is designed for the
operator’s convenience. Unlike cylinder
mounted gas feeders, the components of
the control unit are mounted securely on a
wall mounting panel. This provides a
stable control platform that simplifies the
installation of gas and electrical lines
and protects the fragile rotameter from
constant handling every time the gas
supply is changed.
UNMATCHED SERVICEABILITY
Open panel mounted components provide
for servicing without the need to remove
the entire unit from the wall.
There is adequate room around the
components so that each can be easily
taken apart and serviced on the panel. For
most routine service requirements, no
tools are required.
